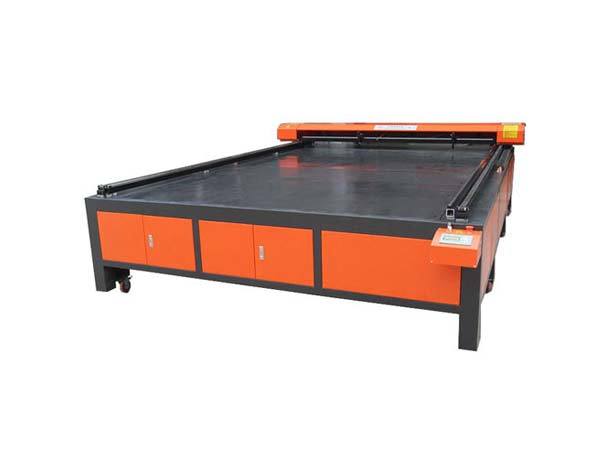

Big size laser cutting machine

Retail price
0.0
Yuan
Market price
0.0
Yuan
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
Product description
Parameters

Laser tube type



        Sealed CO2 laser tube

Laser power



        60w /80W/100w/120w/150w/180w

Engraving area



        2000x3000mm

Whole machine size



        2500x 3560x 1070mm

Engraving speed



        0 - 72,000mm/min

Cutting speed

        0 - 30000mm/min

Cutting depth

        0  30mm acrylic

Repositioning      accuracy



        ±0.015mm

Power supply



        AC 110 - 220V ±10%, 50 - 60Hz

Gross power



        <1,200W

Operating temperature



        0 - 45°C

Operating humidity



       5- 95%

Minimum shaping character

        English 1 x 1mm

Graphic format supported

        BMP, HPGL, PLT, DST, DXP, and AI

Driving system

        Stepper/Servo

Cooling mode

        water-cooling and protection system

Auxiliary equipments

        Exhaust-fans, air-exhaust pipe, water pump, air pump

Controlling software

        DSP control system.

Compatible software

        CorelDraw  AutoCAD  Photoshop Artcut

Accessories optional

Red-light,pointer,up-and-down  platform,water-chiller,muti-head,rotary device
